Ecocera co., ltd.

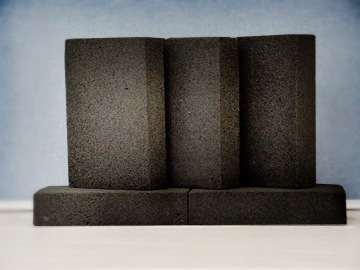

Borosilicate Cellular Glass Block(GI-180 Block)

Specifications of GI-180 Block

	Main composition	Borosilicate glass
	Color	Black
	Trade Mark	GI-180 Block
	Package	60 blocks/carton, 1.5″(38mm) 44 blocks/carton, 2″(51mm)
	Size	6″(152mm)×9″(229mm)×1.5″(38mm) 6″(152mm)×9″(229mm)× 2″(51mm)

Typical Physical Properties of GI-180 Block

Items	Specification	Test Method
Density(Kg/m3)	200 ± 10%
Compressive strength(N/mm2)	Min. 1.1	ASTM C 165
Bending strength(N/mm2)	Min. 0.8	ASTM C 203
Water Vapor Permeability	None
Coefficient of Linear Thermal Expansion(10-6/℃)	Max. 5.5	ASTM E 228
Thermal conductivity(W/m·K), @ 100℉	Max. 0.087	ASTM C 518
Maximum Service temperature(℃)	250 ~ 350

Feature of Product

• High acidity-tolerance due to the manufacture material of borosilicate glass except HF
• Independent porous structure which does not allow any solution to penetrate
• Excellent insulating property
• Excellent physical(Compressive strength), chemical durability
• Excellent adhesion to various structures(carbon &stainless steels, concrete, FRP and other organic linings)
• Excellent thermal property

[Application of GI-180 Block Lining System]

•
•
•
